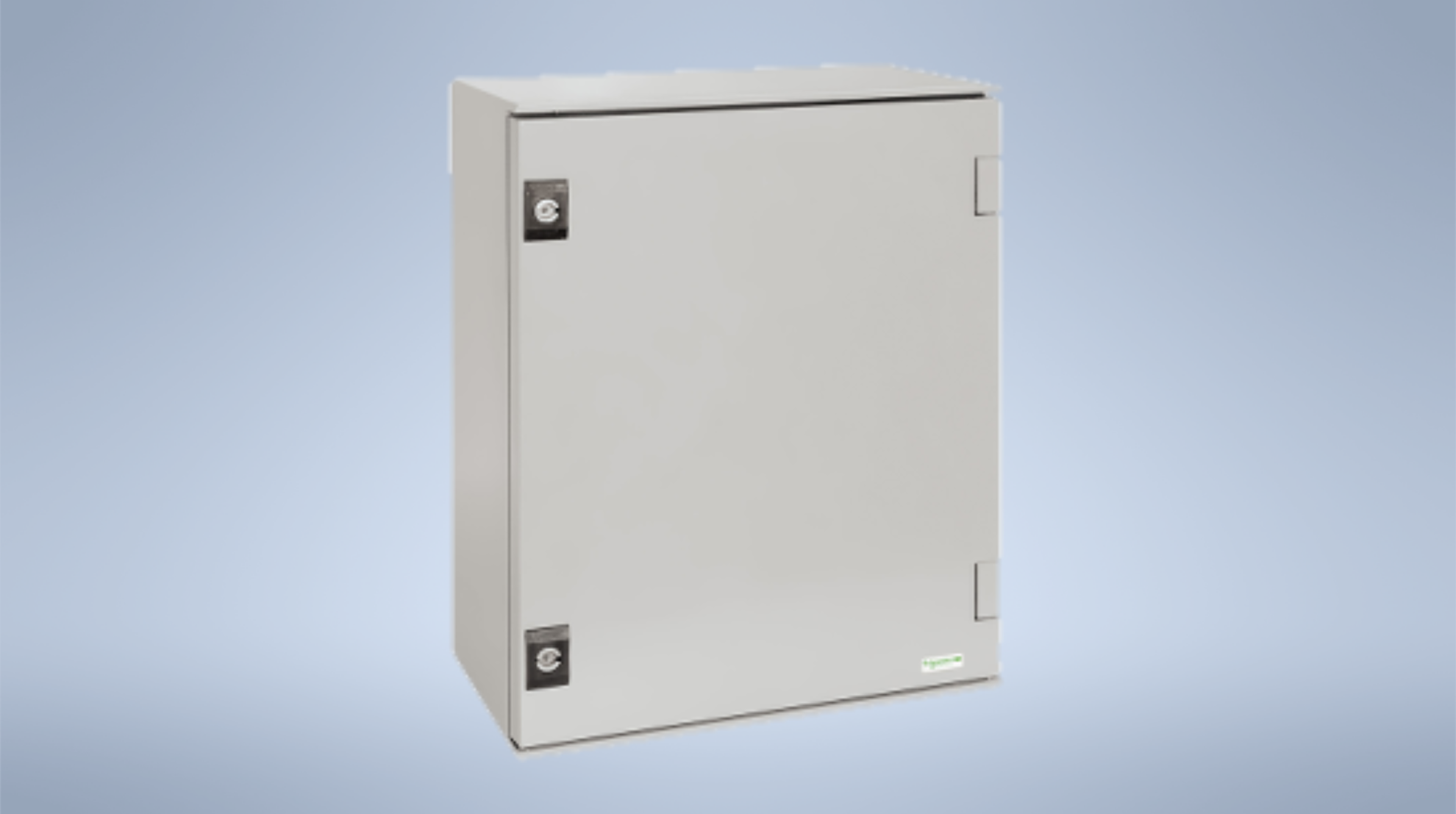

Polyester Single Door Enclosure (847 x 636 x 300)

A Schneider Thalassa PLM Enclosure (847 x 636 x 300)

A class II fiberglass reinforced polyester wall-mounted enclosure. Ideal for outdoor installations and hard environments. The body and door are made from fiberglass and reinforced polyester, moulded by hot compression, RAL7035 colour. The same finish on all surfaces.

Features:

• Bosses for fixation points are moulded, inserts included.
• 2 locks with double-bar insert or 1 lock system with 3 action points.
• Version with plain or glazed door.
• Version with metallic or Bakelite mounting plate.
• ATEX black colour version, plain door.
• Total insulation suitable to produce class II assemblies.
• Degree of protection IP66.
• Impact resistance: IK10 for plain door version, - IK08 for the glazed door.
• Self-extinguish: HB40
• 960 ºC test withstanding.
